tài liệu: | Thép không gỉ | Phím: | 16 (Thiết kế 4x4) |
---|---|---|---|
Mức độ bảo vệ: | IP65 | Giao diện: | PS2 / USB |
Nhiệt độ hoạt động: | -20º C đến + 60º C | Tên sản phẩm: | Bàn phím kim loại |
Điểm nổi bật: | access control keypad,industrial keypad |

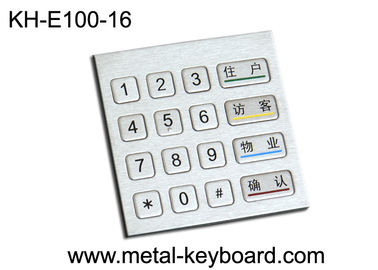

Rugged Industrial Metal Entry Keypad 4 x 4 Matrix for Access Kiosk
• 16keys metal keypad, by 4 x 4 Layout.
• Custom layout and installation design
• Laser engraved characters for excellent durable.
• USB and PS2 connection are available
• Top metal panel with threaded bolt solution.
• Waterproof ,dust proof, vandal proof.shake-proof
•This Metal Keypad is mainly used for unsupervised or semi-supervised positions of varied access applications, such as Info-Kiosk, Internet Kiosk, Check-in Kiosk, Boarding Kiosk, Medical Kiosk, Industrial Control Platform, etc.
MECHANICAL DATA
Material: Super quality SUS304 Brushed stainless steel
Keypad Layout: 4 x 4 design,10 numerical keys and 6 function keys
External keypad: with connector for 2 bars x 4 function keys
Key top style: Flat keys, laser engraved & etched graphics & raised braille on keys are available
Stroke travel: 0.45mm
Switch life: more than 1 million of per key
OS: All windows, Linux, Unix, Mac OSX
N.W.:0.45 KGs
ELECTRICAL DATA
Security: encrypted key and self destruction function when tamper attack,
Sensitive data will be kept for more than 5 years when power off.
Encryption process: data encryption and data decryption, MAC and algorithm, PIN encryption
Supply Voltage:5.0V DC±5%
Current Rating: appr. 30mA
EMC Standard: It is compliance with the council EMC directive 2004/108/EC
EN55022: 2006+A2:2010
EN55024: 1998+A1:2001+A2:2003
Lifespan > 5 years
ENVIRONMENTAL ADAPTABILITY
Operating temperature:-20°C to +60°C
Storage temperature: -30°C to +70°C
Operating RH: 20-95%
Atmospheric pressure: 60-106Kpa.
RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level: IP65(front panel)
Vandal resistant: IK10
Key Lifespan >10 million actuations
MTBF >5,0000H
MTTR <30min
